STATOR KIT + CDI BOX + IGN COIL HON XR 600 R '88-00'

Free Shipping on Orders Over $90!*

* Total order weight must not exceed 10kg. Freight charges may apply. Within Australia only.

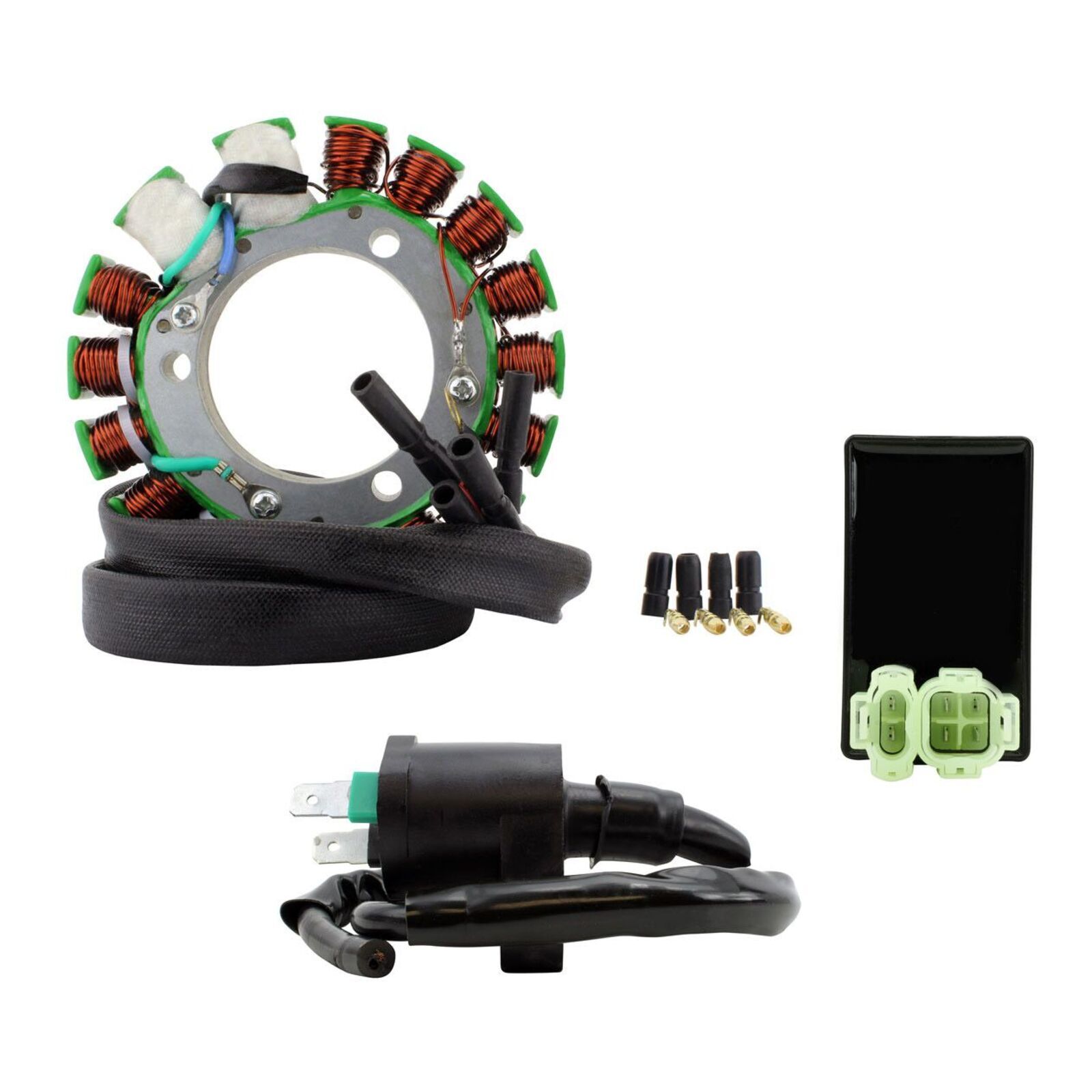

Brand new Kit High Output Stator 200W + High-Performance CDI + External Ignition Coil

  • Direct replacement to your original unit
  • Plug-and-play direct fit easy installation
  • All products shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

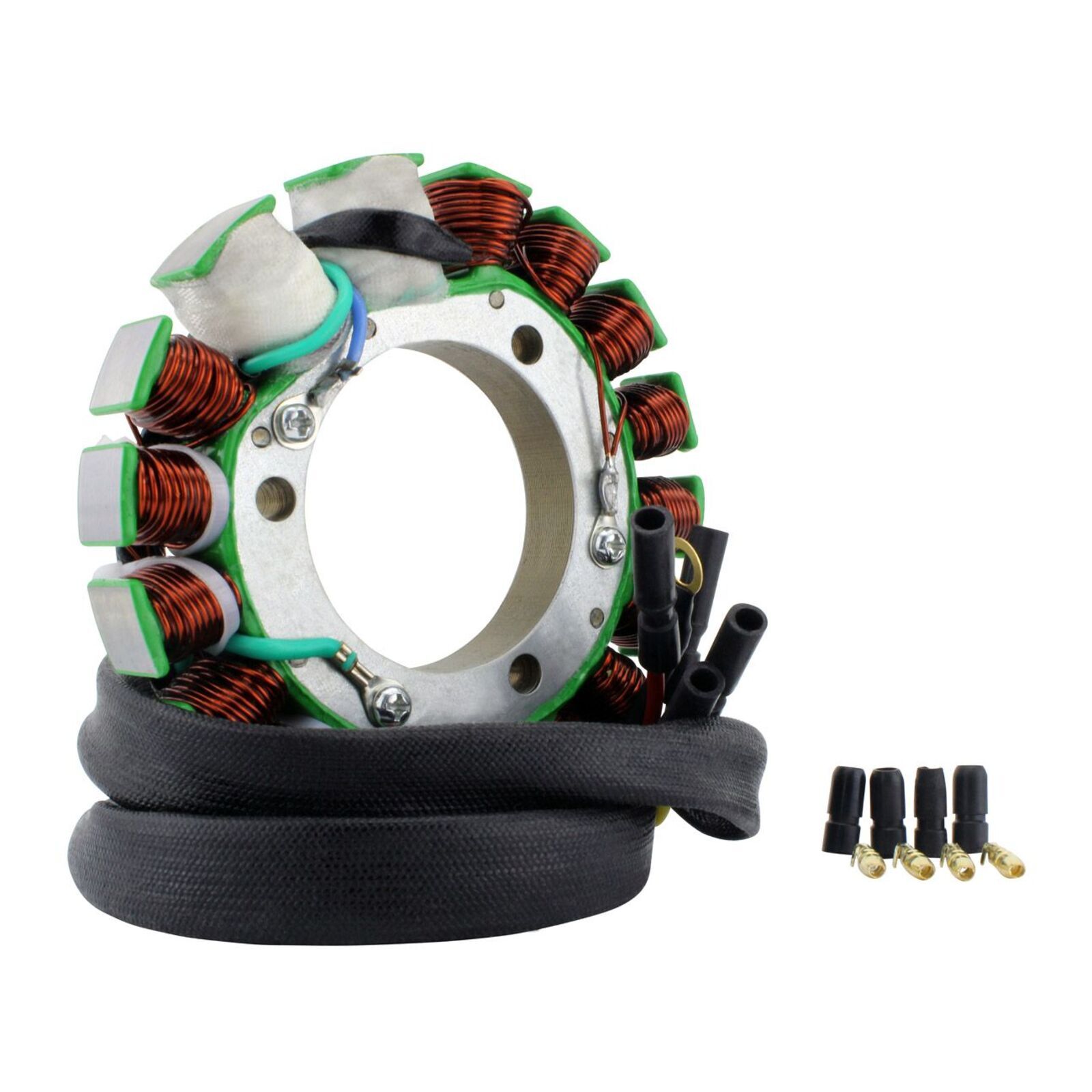

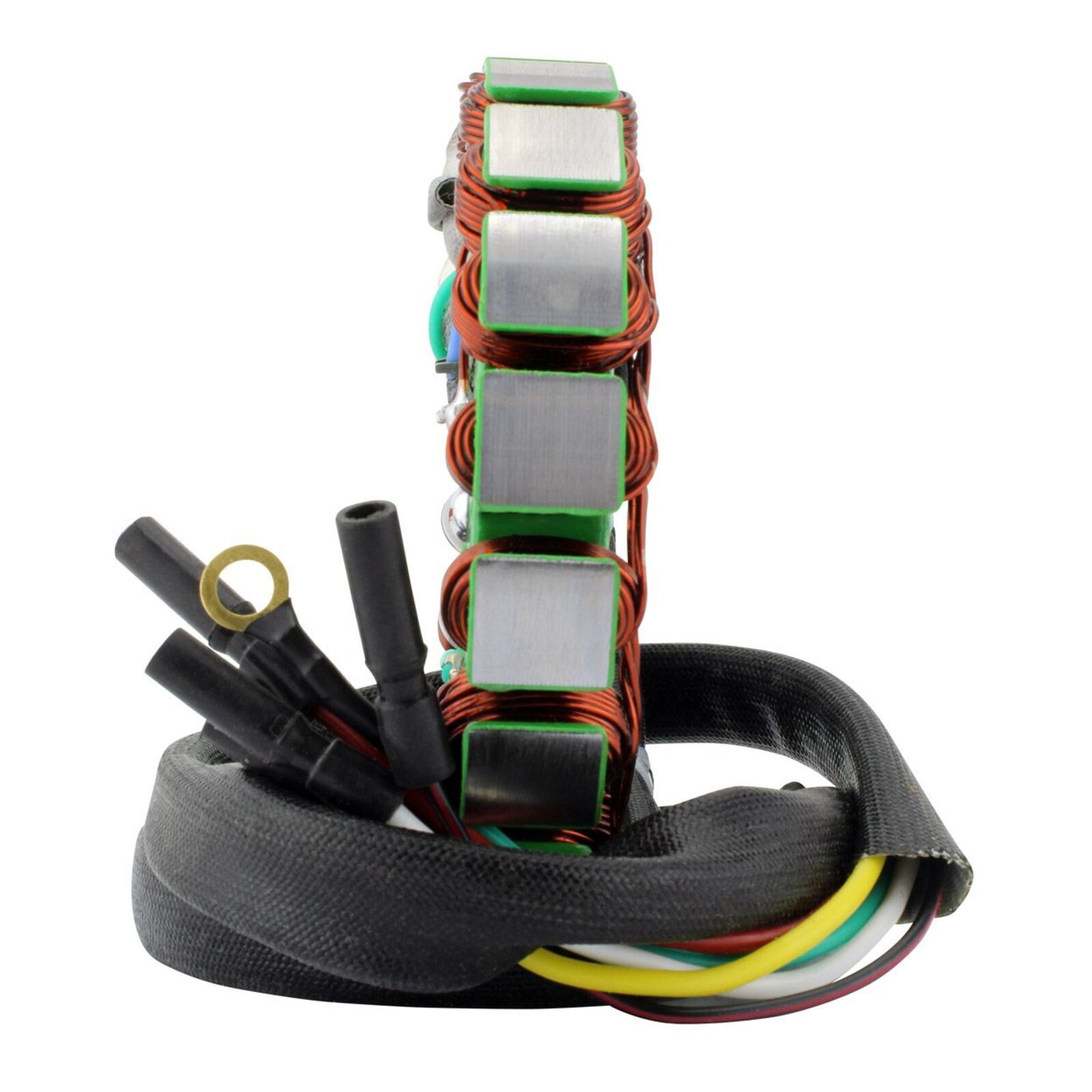

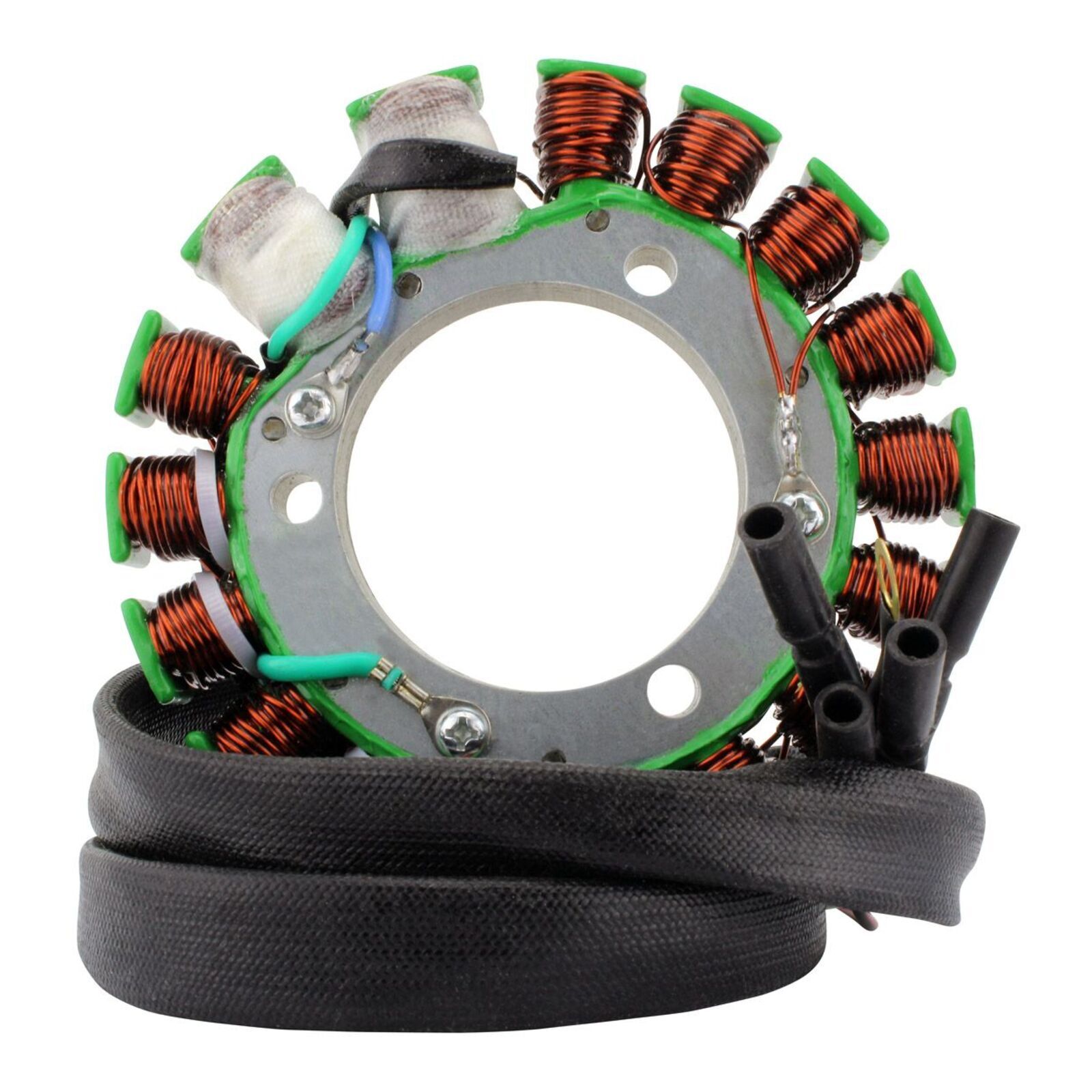

Brand new aftermarket High output Stator 200W

  • Highest grade of lamination materials
  • Highest grade of copper winding resistant to 200 degrees Celsius
  • 2 x 100W
  • Connectors included
  • Rubber grommet included

We have even included the opposite connector (main harness side) as we know these are often melted / corroded/defective and a major cause of repetitive electrical issues.

Brand new aftermarket CDI box

  • Enhanced timing curve increased rev limiter (approximately 1000 rpm)
  • Higher grade of electronic components.
  • The quality exceeds the OEM equipment

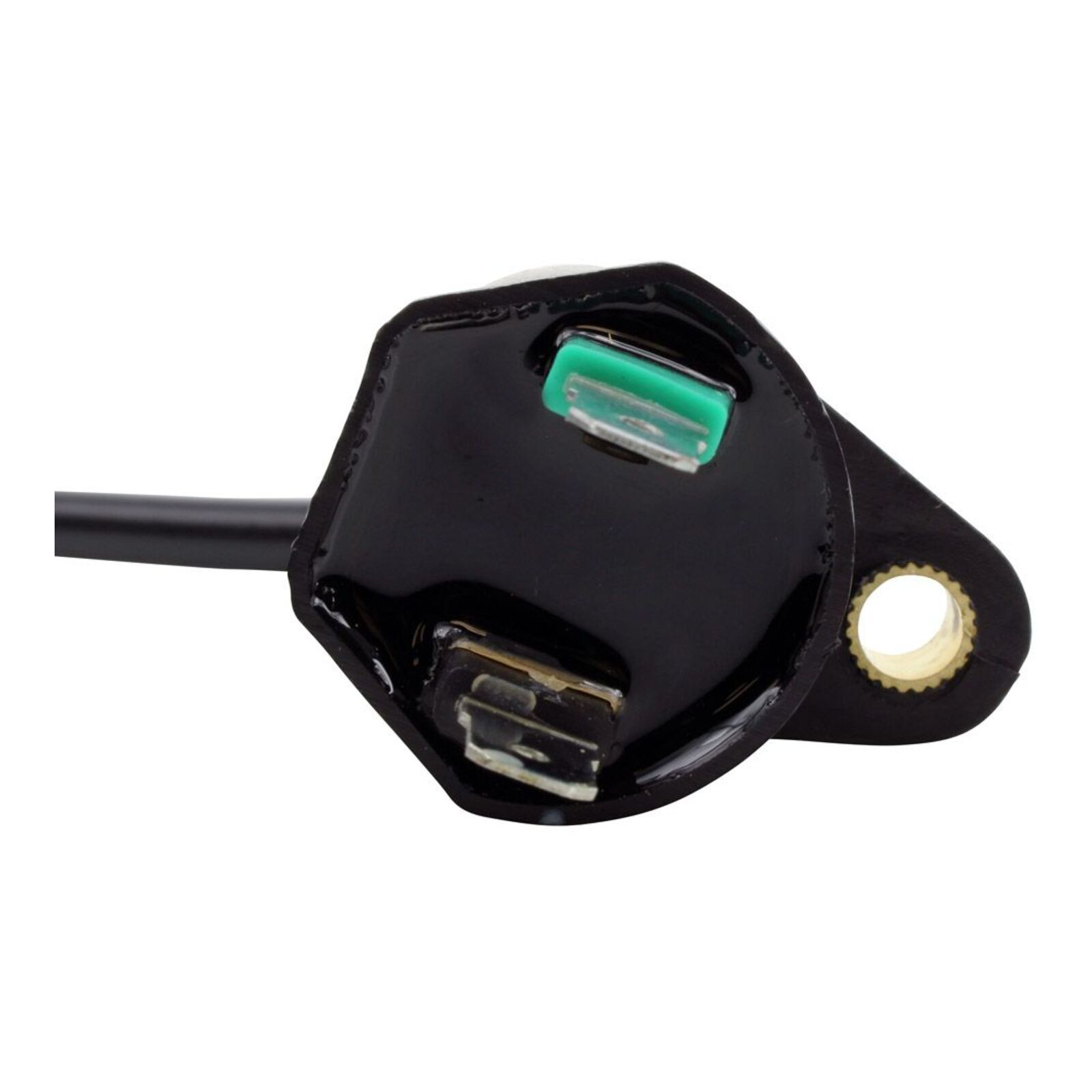

Brand new aftermarket External Ignition Coil

  • You must re-install your OEM spark plug cap(s)
  • Once your OEM spark plug cap(s) are re-installed our part becomes a Plug- and-play unit direct fit and easy to install.

High output Stator 200W

  • Dimensions:
    • Interior diameter: 54 mm
    • Exterior diameter: 115 mm
    • Thickness: 15 mm
    • Length of wires stator to grommet: 200 mm
  • Length of wires grommet to plug: 700 mm
  • Other specifications:
    • Number of wires: 5
    • Number of plugs: 5
    • Number of pins: 3
    • Number of poles: 17
    • Wire to wire resistance:
    • Alternator: White to Green = 0.4 ohms +-20%
    • Alternator: Yellow to Red = 0.4 ohms +-20%
    • Source: Black/Red to Green = 140 ohms +-20%

High- performance CDI Box

  • Dimensions:
    • Height: 22mm
    • Length: 66mm
    • Width: 42mm
  • Other specifications:
    • Number of plugs: 2
    • Number of pins: 6
