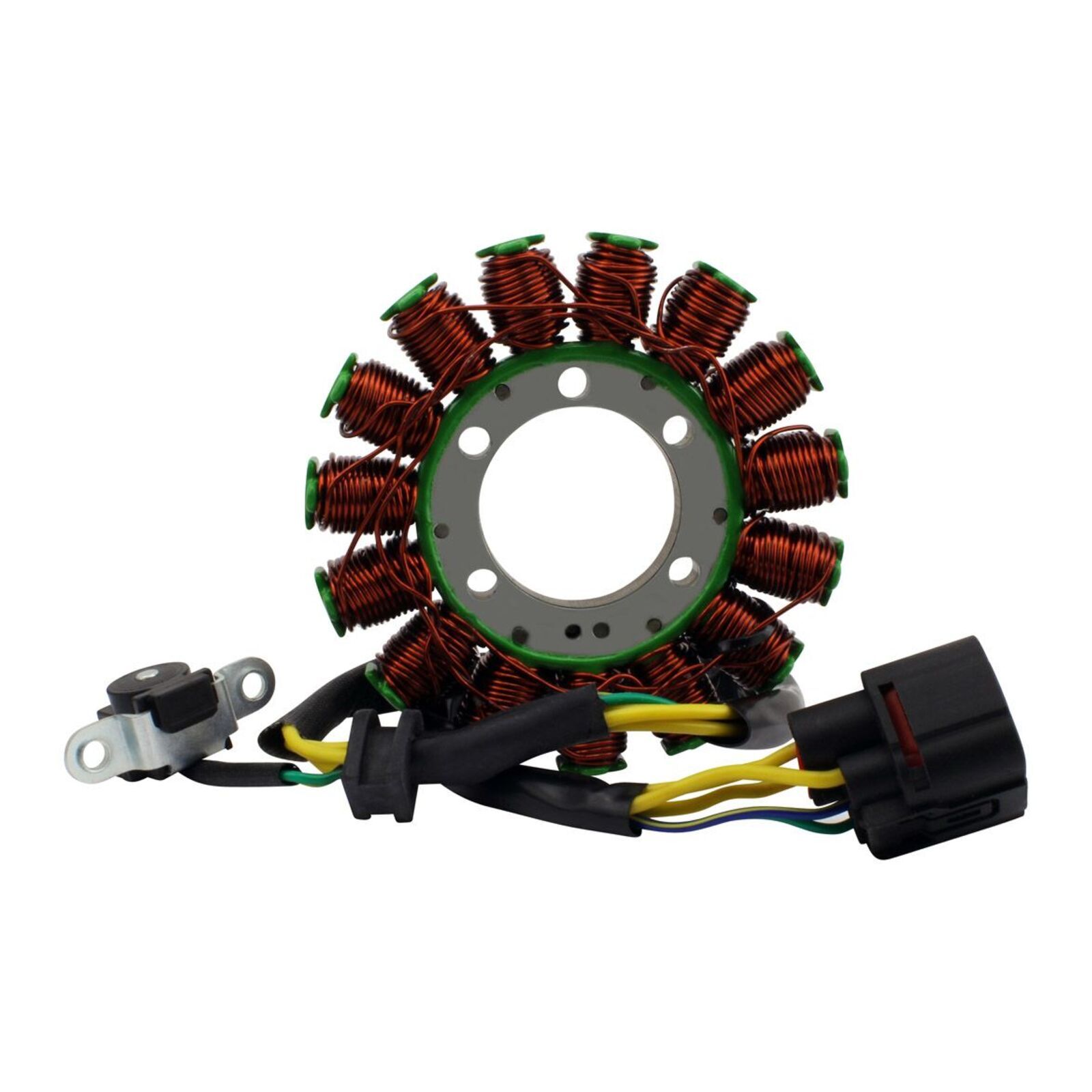

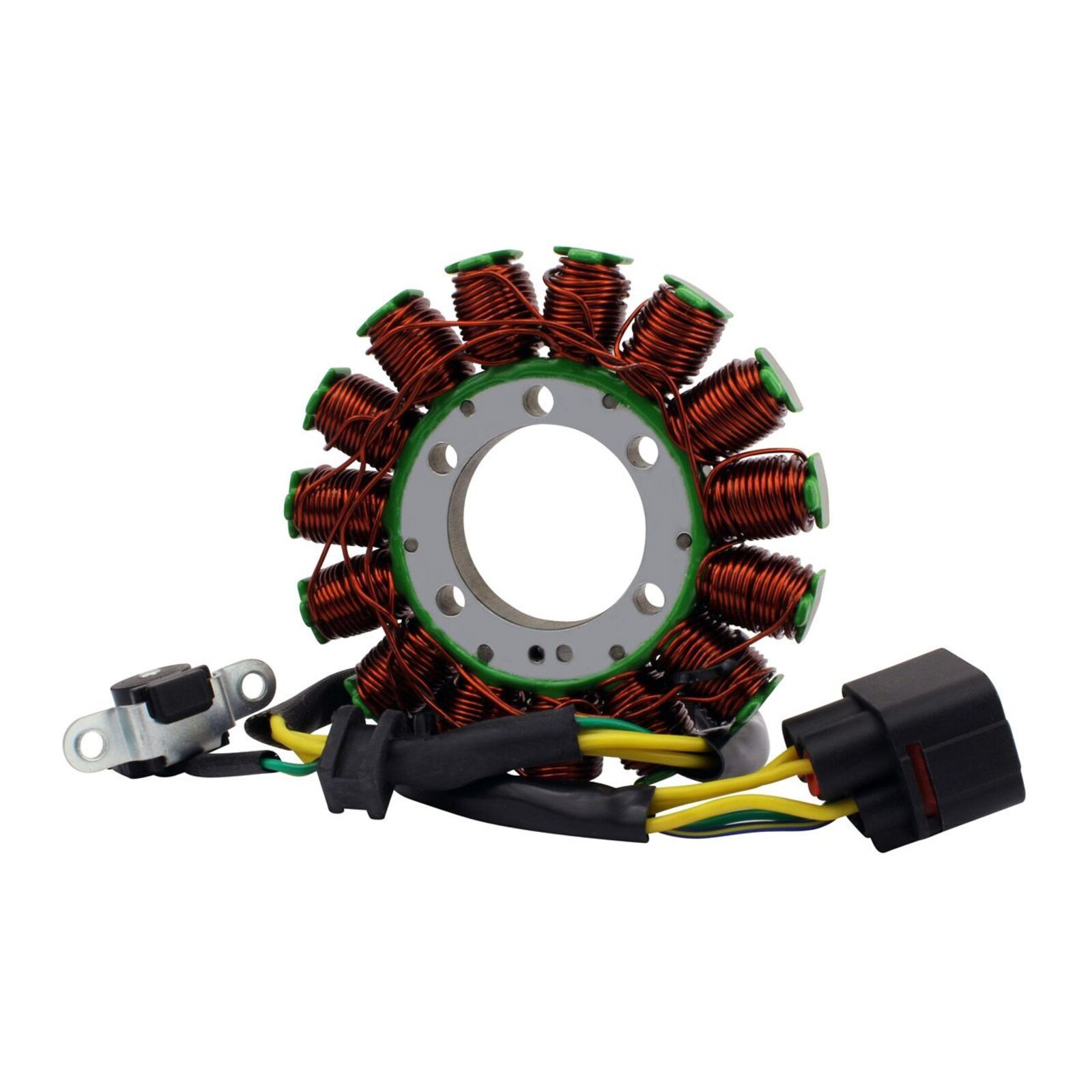

Stator for Honda SXS700 Pioneer (2014–2024) - RMS010-108248

Free Shipping on Orders Over $199!*

* Total order weight must not exceed 10kg. Freight charges may apply. Within Australia only.

Direct replacement to your original unit.

Features:

  • Plug-and-play direct fit easy installation.
  • Highest grade of lamination materials.
  • Highest grade of copper winding resistant to 200 degrees Celsius.

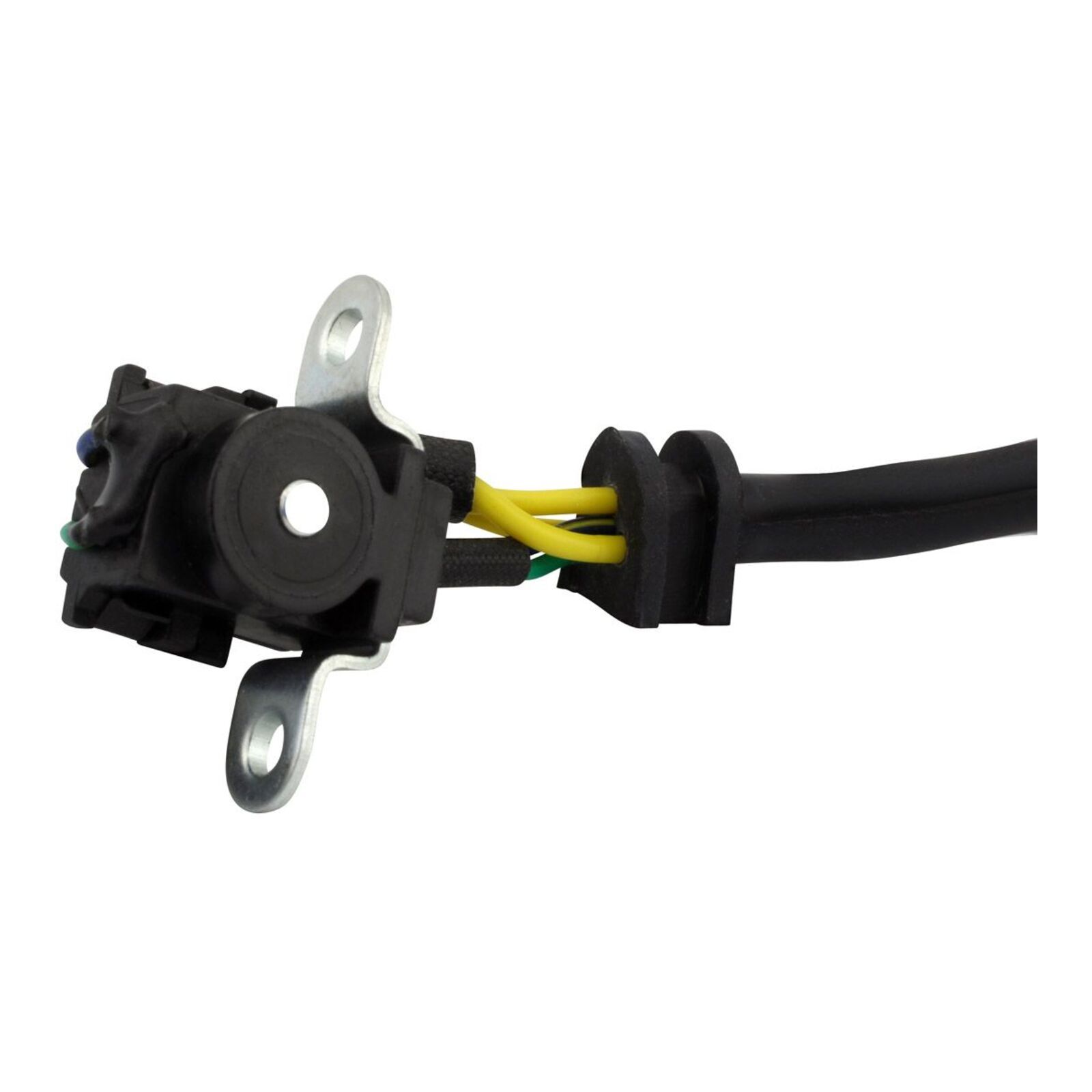

  • Pickup pulsar coil included.
  • Connectors included.
  • Rubber grommet included.
  • All products shipped are tested.

Dimensions:

  • Interio r Diameter: 42 mm
  • Exterior Diameter: 115 mm

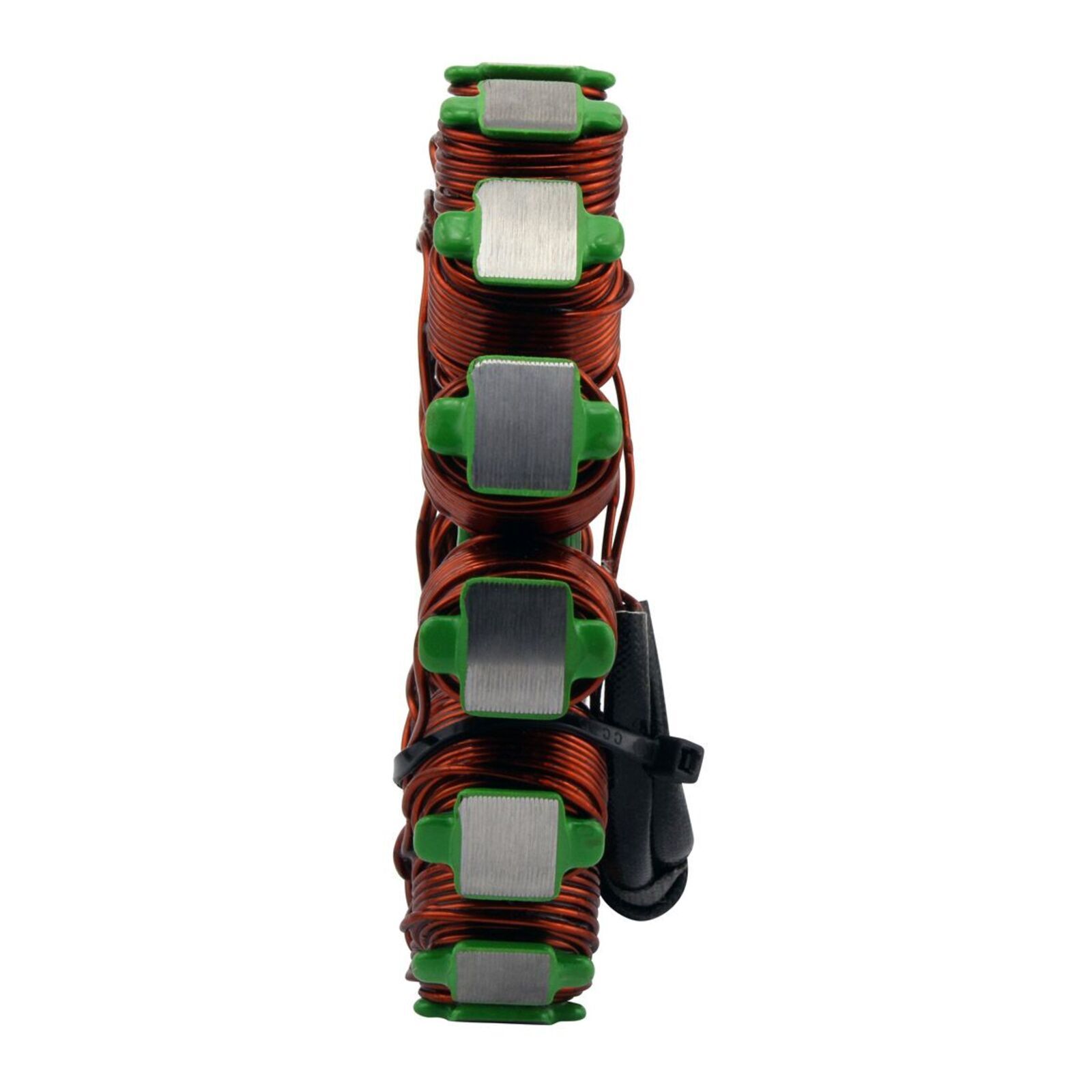

  • Thickness: 10 mm
  • Length of Wires (Stator to Grommet): 90 mm
  • Length of Wires (Grommet to Plug): 40 mm
  • Length of Pickup Coil's Wire to Grommet: 320 mm

Other Specifications:

  • Number of Wires: 5

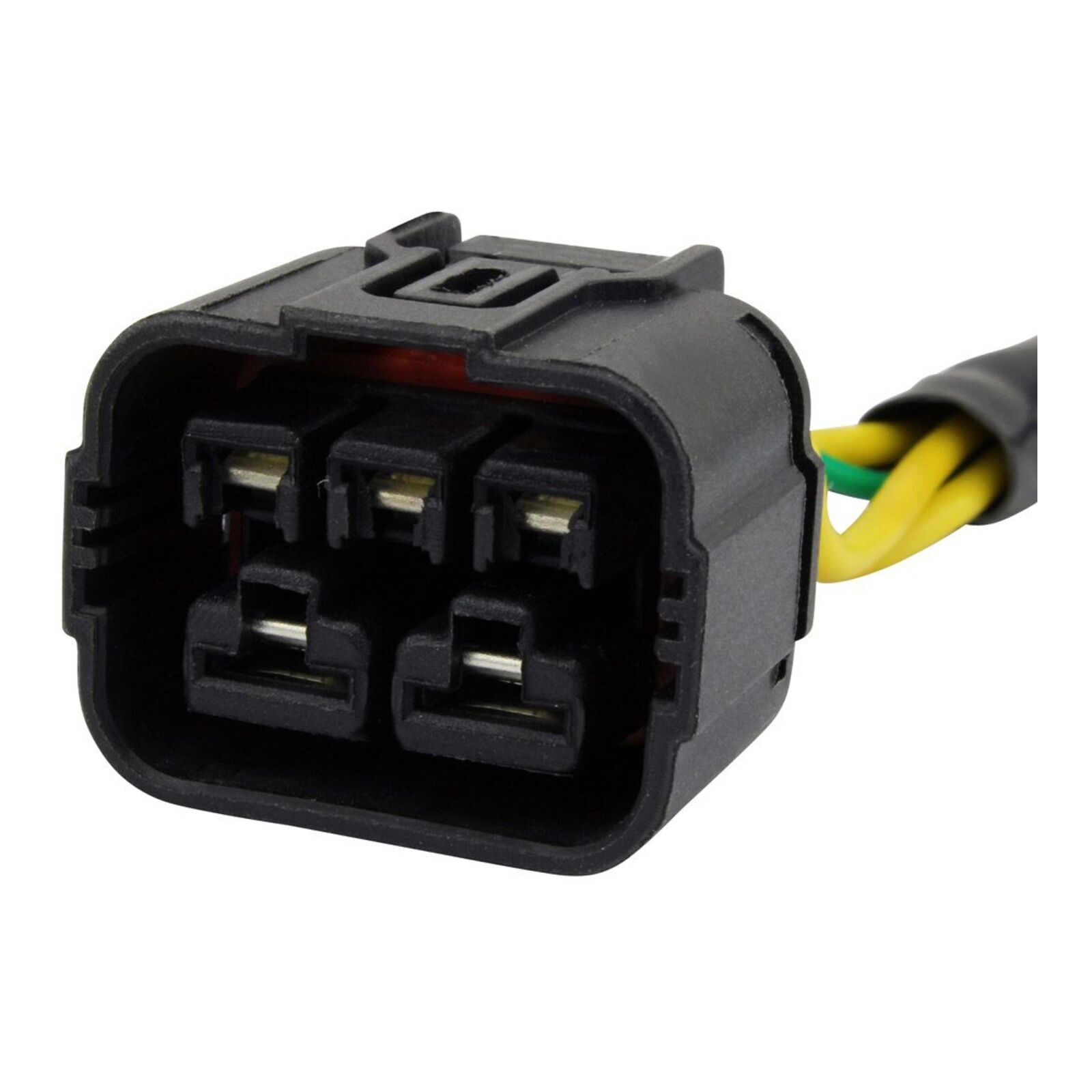

  • Number of Plugs: 1
  • Number of Pins: 5
  • Number of Poles: 15
  • Alternator (Yellow to Yellow): 0.4 ohms ± 20%
  • Pickup (Blue/Yellow to Green): 240 ohms ± 20%
