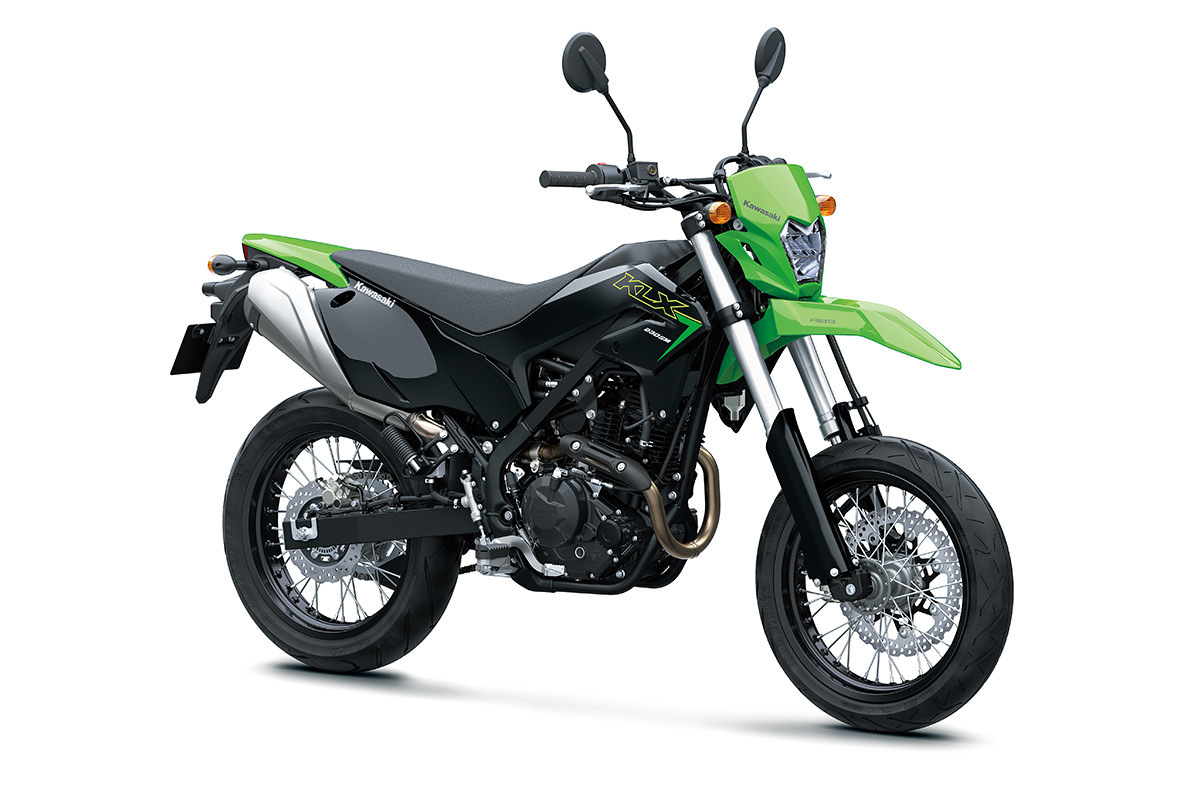

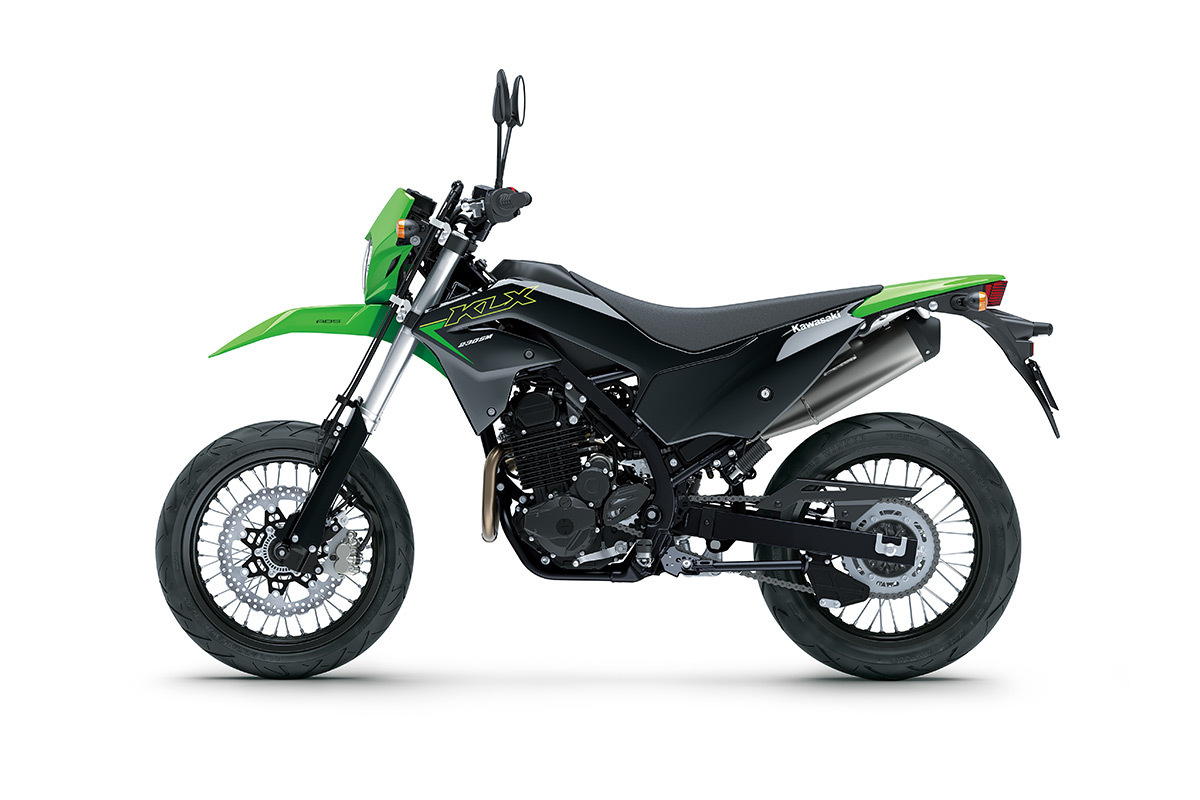

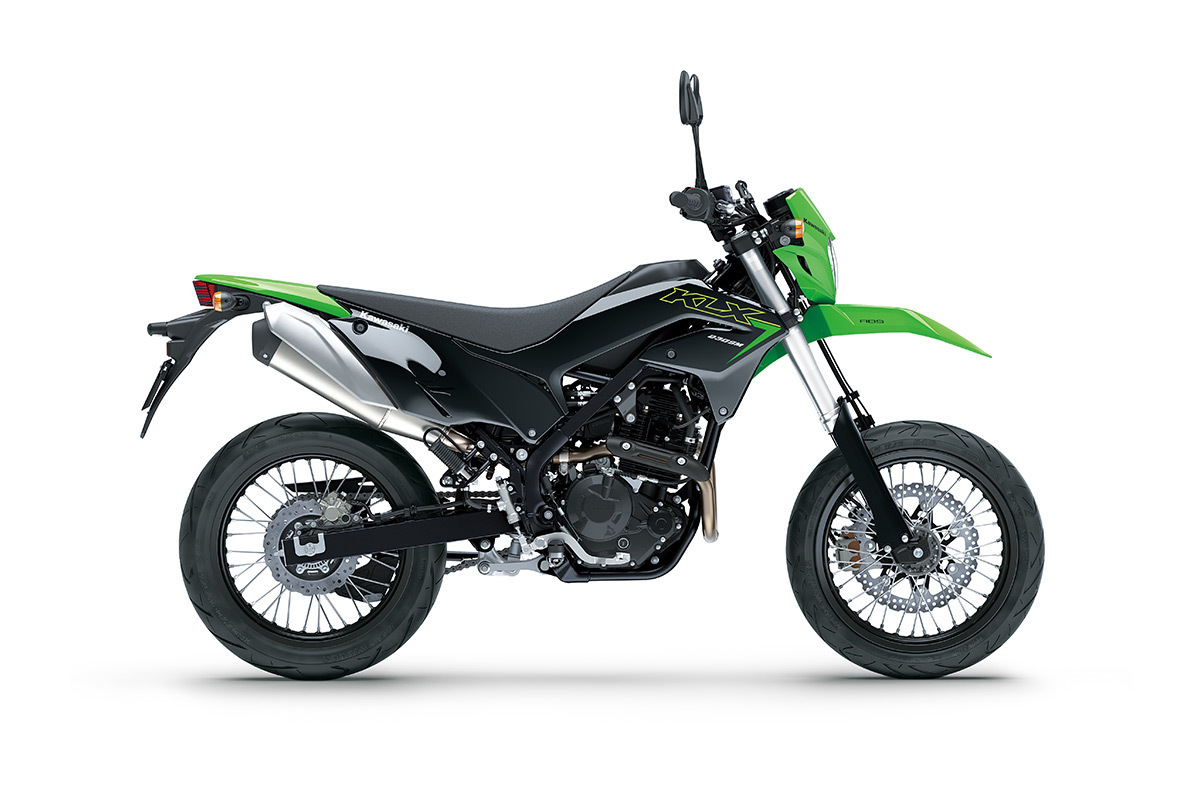

Kawasaki KLX230SM (LAMS) (MY23)

Lightweight Supermoto



or pay $44.00* per week.

Features of the Kawasaki ALL-NEW 2023 KLX230SM

Supermoto-tuned long-travel suspension | 17” front & rear wheels with road tyres

  • Learner approved model (LAMS)
  • Powerful large-diameter disc brakes
  • 845 mm seat height
  • Aggressive supermoto styling
  • Bright LED headlight

Overview of the Kawasaki KLX230SM model range

Turn up the fun on the streets with this supermoto. Every trip is an experience when you ride through the city sporting a quick-revving engine and nimble handling. Be quick to steal the scene with equal parts performance and attitude.

  • 233 cc Fuel-Injected, Air-Cooled, Four-Stroke Single with Electric Start Supermoto-Tuned Long-Travel Suspension 17" Front & Rear Wheels with Road Tyres


All attitude. No apologies. : The aggressive supermoto-inspired bodywork, finishes, and components on the KLX230SM supermoto motorcycle deliver performance and attitude.

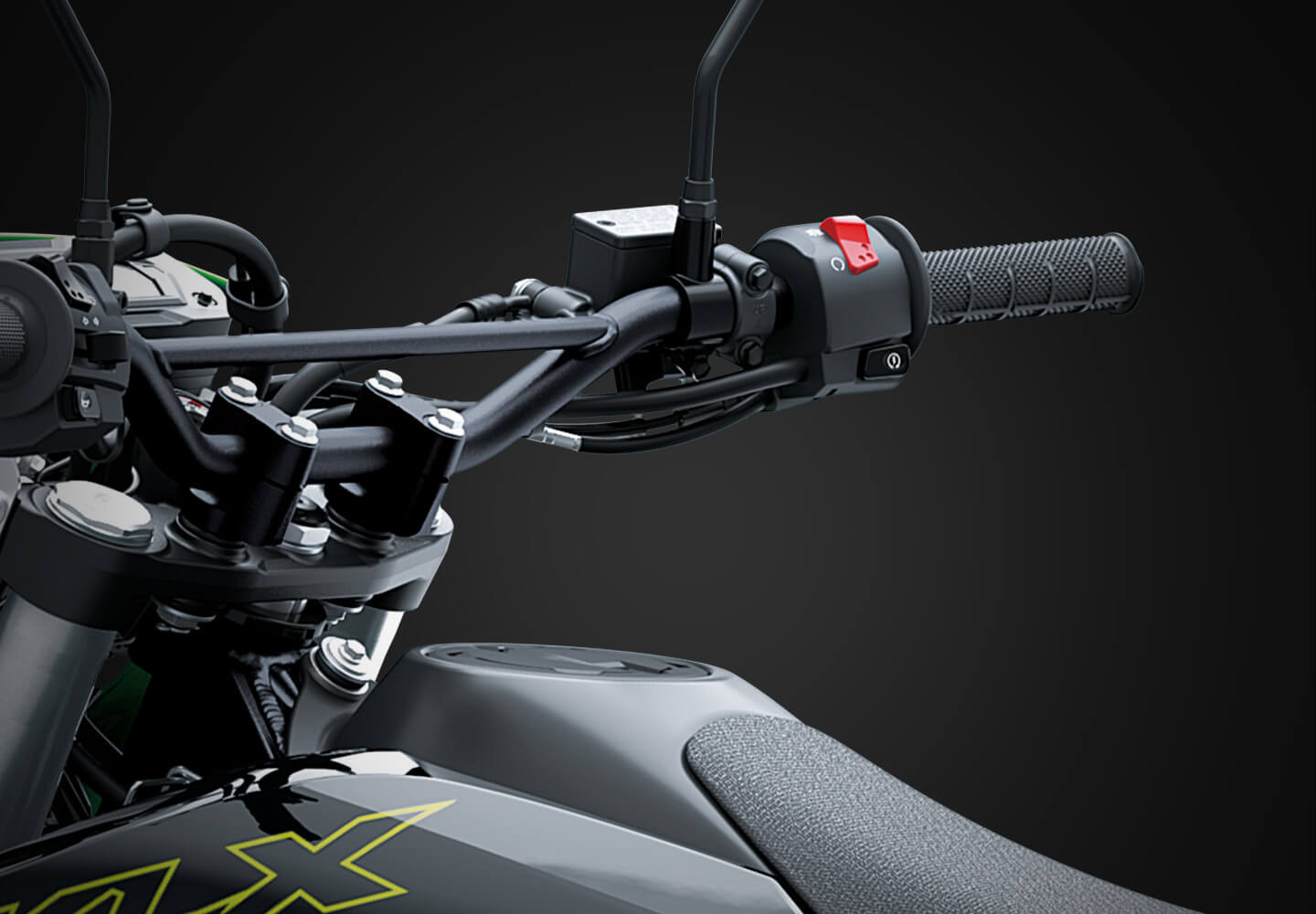

  • STYLING - Blacked Out: The blacked-out frame, engine, swingarm, handlebar, and rims make this bike a real standout on the street.
  • LED HEADLIGHT - Modern Touches: The modern LED headlight and sporty front fender, matched to the 17-inch front wheel, add to the aggressive supermoto image.

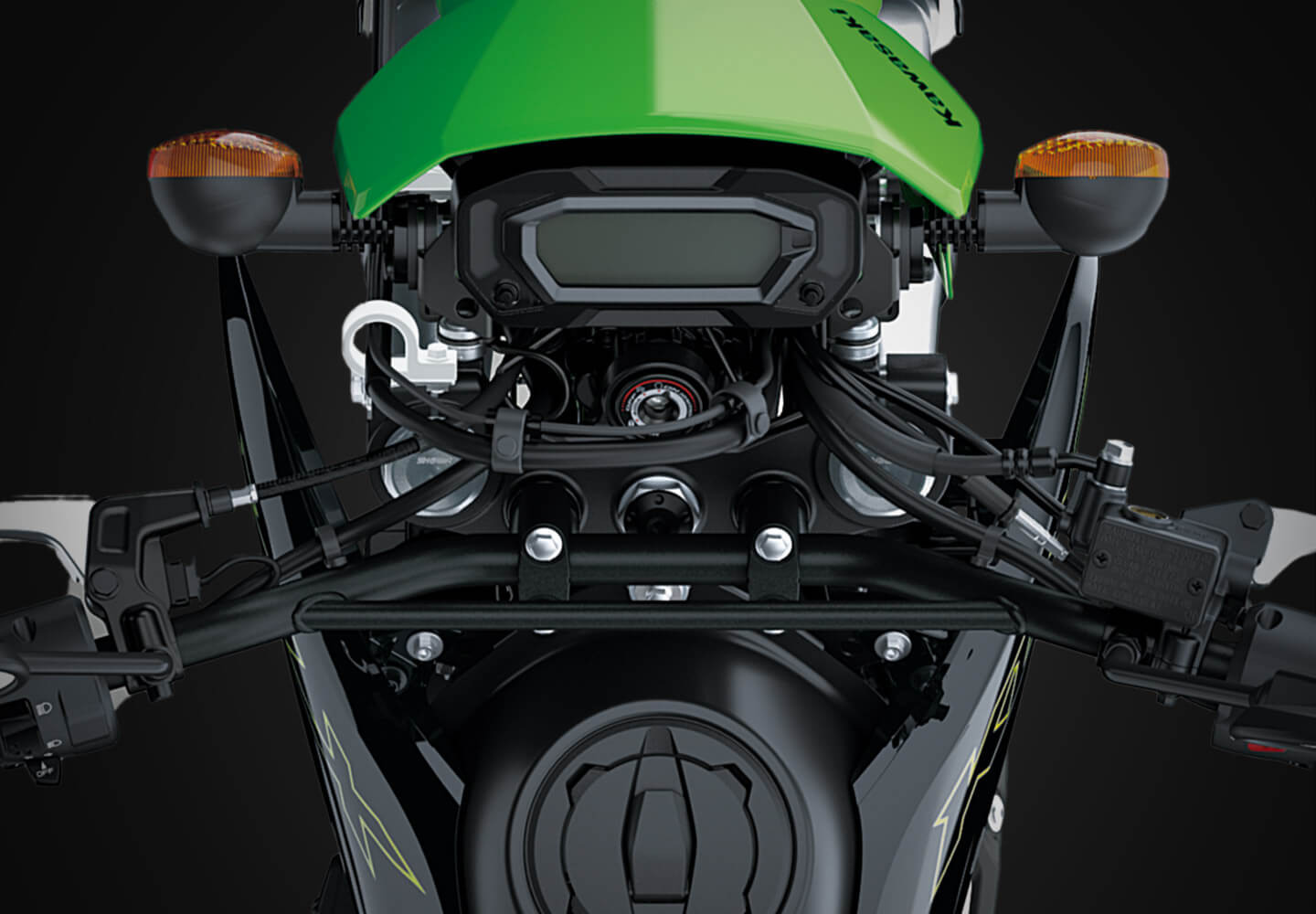

  • DIGITAL DISPLAY - Digital Instrumentation: From the cockpit, an all-digital instrument panel offers at-a-glance information thanks to a large, easy-to-read LCD screen.


Rev Up the Fun: The KLX230SM supermoto motorcycle is powered by a 233 cc, fuel-injected, air-cooled engine. Experience a fun and exciting spread of power tuned for low- to mid-range acceleration. Colour shown not available in Australia

  • POWER CHARACTER - Power Delivery: Smooth power delivery and crisp throttle response help riders of all skill levels manoeuvre through stop-and-go city traffic. Not all colours shown available in Australia
  • ELECTRIC START & FI - Electric Start & Fuel Injection: Electric start offers easy starting while fuel injection offers reliability in a wide range of conditions and contributes to improved fuel economy.


Ready for Action: The KLX230SM supermoto motorcycle is built with a compact and purpose-built chassis that contributes to lightweight and highly manoeuvrable handling.

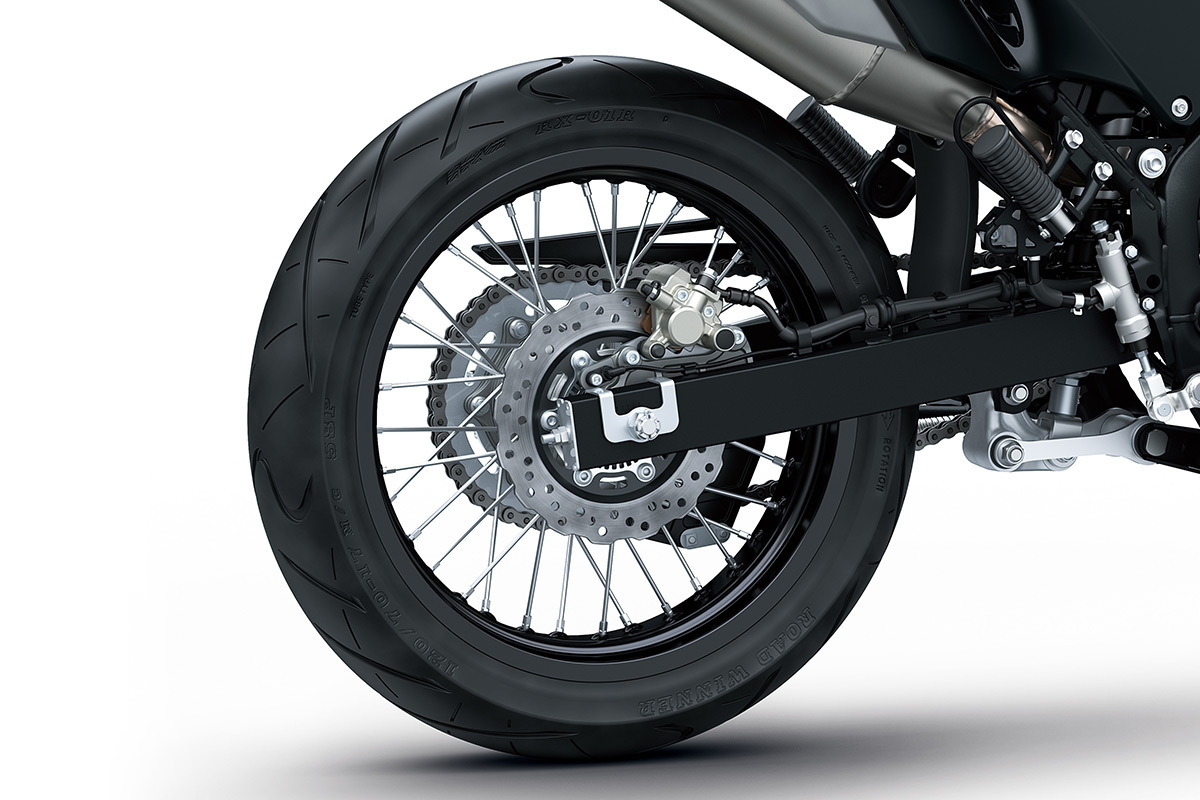

  • WHEELS - Supermoto Wheels: The 17-inch wheels, road tyres, and short wheelbase add agility to the quick handling package.
  • SUSPENSION - Long-Travel Suspension: Suspension performance offers 204 mm of travel up front and 168 mm in the rear. The ø37 mm inverted front fork contributes to supermoto styling as well as front-end rigidity. The Uni Trak rear suspension provides great bump absorption and gives the bike a planted feel.

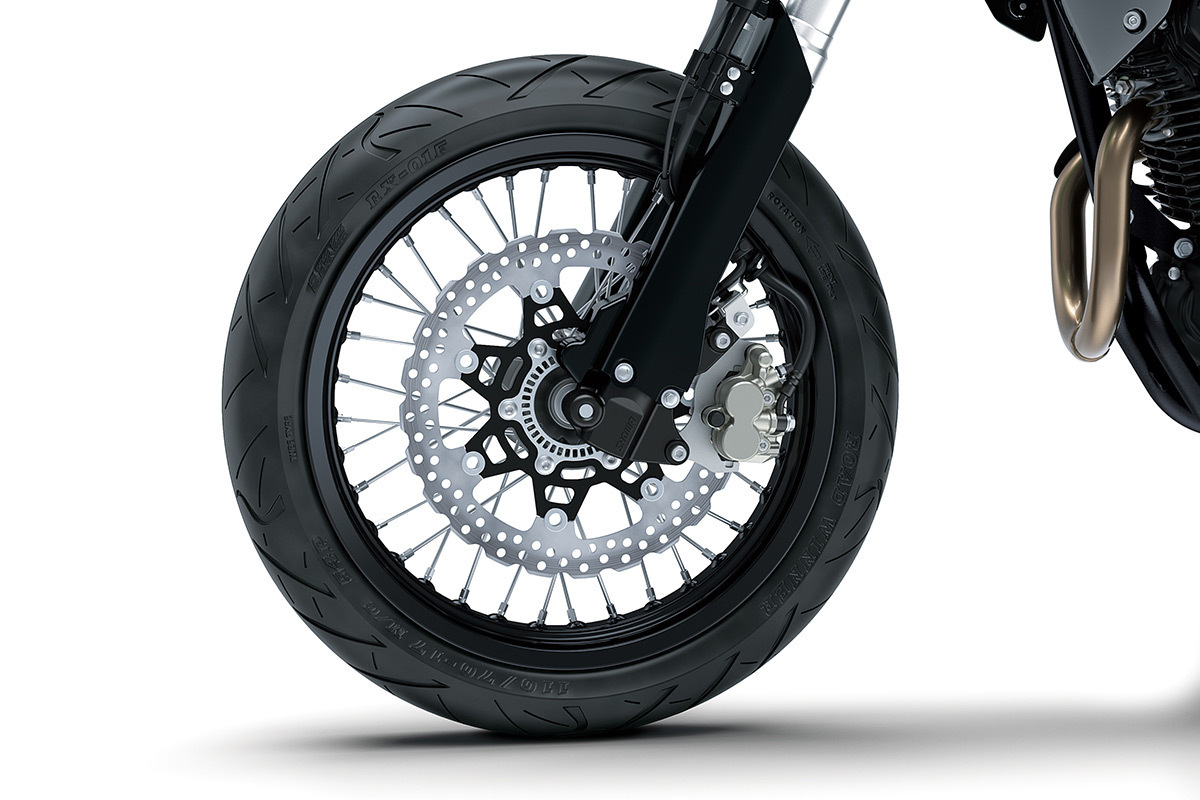

  • BRAKES - Powerful Brakes: Substantial braking power is provided by a large ø300 mm semi-floating petal disc and twin-piston caliper up front and a ø220 mm petal disc and single-piston caliper rear brake package.


Make Comfort a Priority: An upright and relaxed riding position makes it comfortable to ride the KLX230SM supermoto motorcycle. Rider-friendly ergonomics complemented by a thick-padded seat, rubber-dampened footpegs, and a 845 mm seat height make the KLX230SM one of the best options for tackling any urban jungle.

  • FOOTPEGS - Ride Comfort: Rider-friendly ergonomics are complemented by a thick-padded seat and rubber-dampened footpegs to increase comfort when navigating city streets.
  • SEAT HEIGHT - Low Seat Height: A low 845 mm seat height allows riders to comfortably reach the ground at stops for increased confidence. Not all colours shown available in Australia


LAMS Approved Vehicle

Please consult your local authority before purchasing a motorcycle for learner use. Each state and territory has its own regulations relating to the range of motorcycle models approved under the Learner Approved Motorcycle Scheme. The manufacturer does not warrant or represent that the models shown are approved in each state and territory.

Kawasaki KLX230SM (LAMS) (MY23)

Lightweight Supermoto



or pay $44.00* per week.


Chassis Management TechnologyABS (Anti-lock Brake System)


Maximum Power 14.0 kW {19 PS} / 7,600 rpm
Maximum Torque 19.8 Nm {2.0 kgfm} / 6,100 rpm
Engine 4-stroke Single
Displacement 233 cc
Bore x Stroke 67.0 x 66.0 mm
Compression Ratio 9.4:1
Valve System SOHC, 2 valves
Fuel System Fuel injection: ø32 mm x 1
Ignition Digital
Starting Electric
Cooling Air-cooled
Lubrication Forced lubrication, wet sump
Transmission 6-speed, return
Primary Reduction Ratio 2.871 (89/31)
Gear Ratio: 1st 3.000 (39/13)
Gear Ratio: 2nd 2.067 (31/15)
Gear Ratio: 3rd 1.556 (28/18)
Gear Ratio: 4th 1.261 (29/23)
Gear Ratio: 5th 1.040 (26/25)
Gear Ratio: 6th 0.852 (23/27)
Final Reduction Ratio 3.071 (43/14)
Clutch Wet multi-disc, manual
Final Drive Chain


Frame Perimeter, high-tensile steel
Front Suspension ø37 mm inverted fork
Rear Suspension New Uni Trak with adjustable spring preload
Front Wheel Travel 204 mm
Rear Wheel Travel 168 mm
Rake 26.5°
Trail 86 mm
Steering Angle (L/R) 45° / 45°
Front Tyre 110/70-17M/C 54P
Rear Tyre 120/70-17M/C 58P
Front Brake/s ø300 mm semi-floating petal disc
Front Caliper/s Twin-piston
Rear Brake ø220 mm petal disc
Rear Caliper Single-piston


Dimensions (LxWxH) 2,050 x 835 x 1,120 mm
Wheelbase 1,375 mm
Road Clearance 230 mm
Seat Height 845 mm
Curb Mass 135 kg
Fuel Capacity 7.5 litres
Model Code KLX230RPFNN


Sydney City Motorcycles offer a range of competitive finance packages that can be tailored to each individual.

Our finance options revolve around three key principles; quick, competitive, and hassle free. No matter what your circumstances are, we urge you to fill out a quick online enquiry. We have multiple lenders to choose from so our Business Managers will do all the work when it comes to finding the best possible package. With low bank rates and same-day approvals on most processed applications, Sydney City Motorcycles is a convenient one stop shop.

We can finance additional extras such as accessories or riding gear, extended warranties, and various other extras that will ensure the absolute maximum safety and enjoyment after your purchase.

Put simply, if you are looking to borrow money to fast track your purchase then Sydney City Motorcycles has you covered!


At Sydney City Motorcycles we are registered agents for all of the major motorcycle insurance companies. What does this mean for you? Often our insurance premiums are much cheaper than those of online insurance companies. We can broker the best possible insurance policy for you that covers all of your needs for the lowest possible price.

Our insurance products include but are not limited to:

  • Fire and theft.
  • Fully comprehensive.
  • Loan protection insurance.
  • Death and permanent disability.
  • Tyre and rim.

Bike Stock No: KAW-KLX230SM-L-MY23_1, quote this when you contact us to fast-track your enquiry.
