HIGH OUTPUT STATOR KAW KVF 360 400 PRAIRIE 99-12 (RM01074)

Free Shipping on Orders Over $90!*

* Total order weight must not exceed 10kg. Freight charges may apply. Within Australia only.

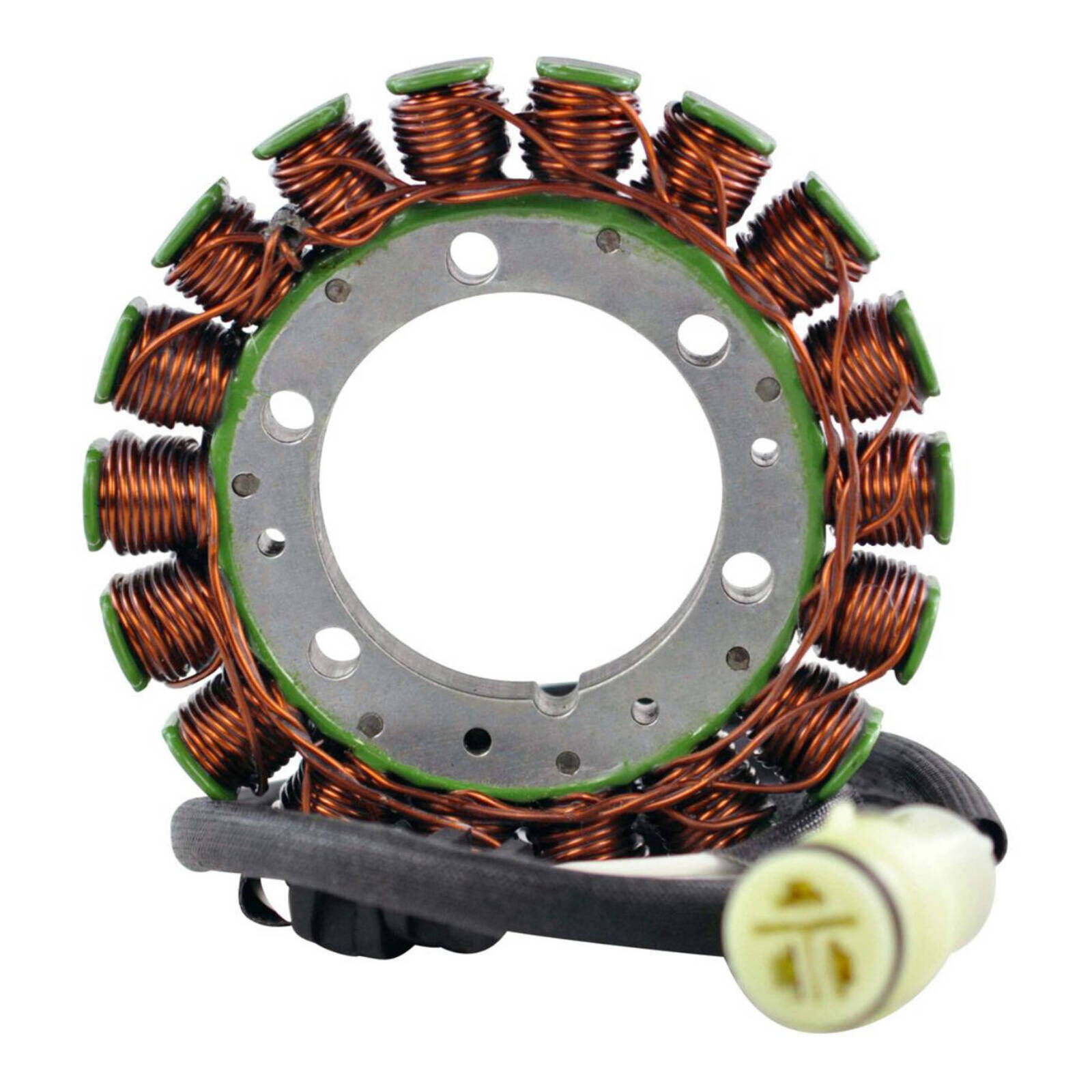

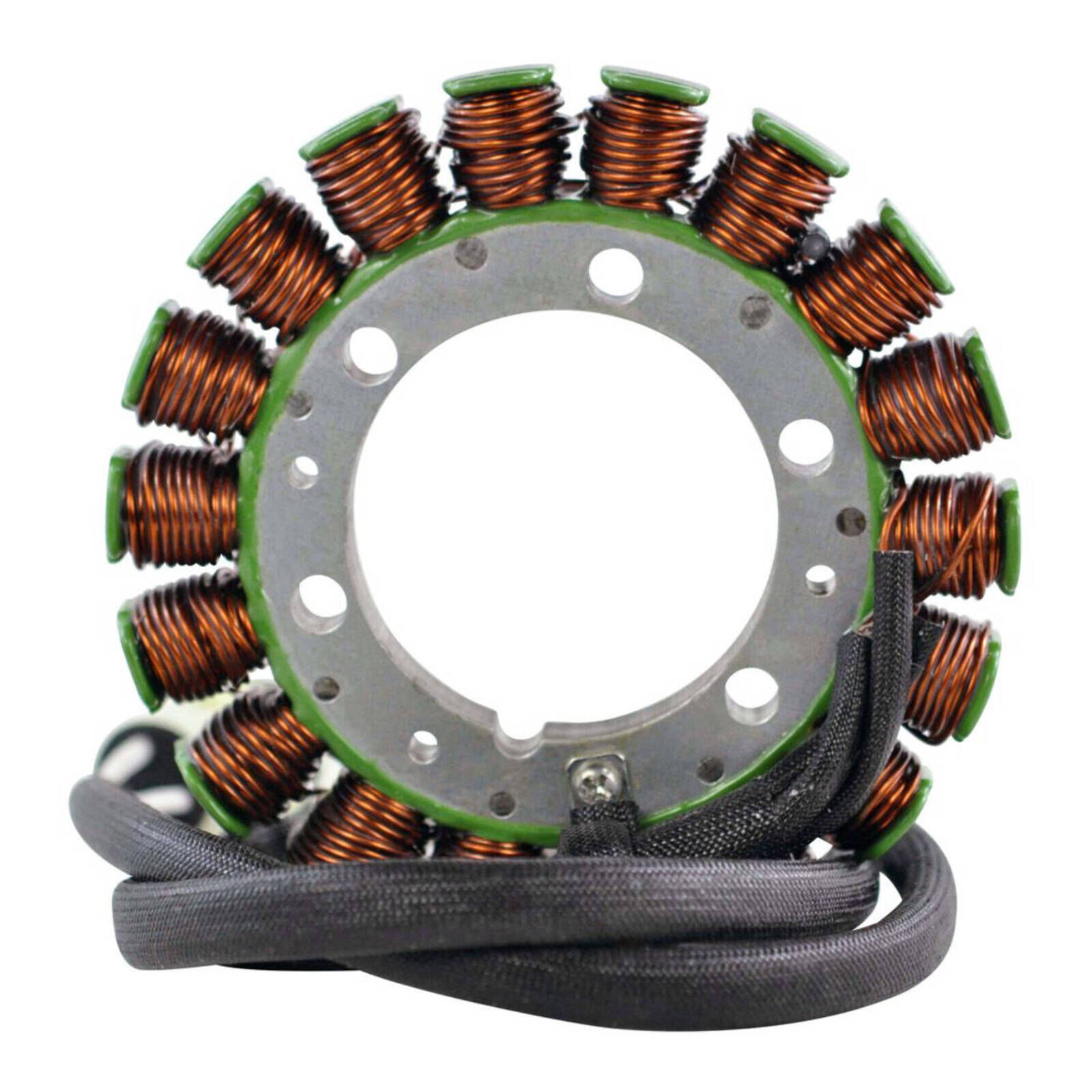

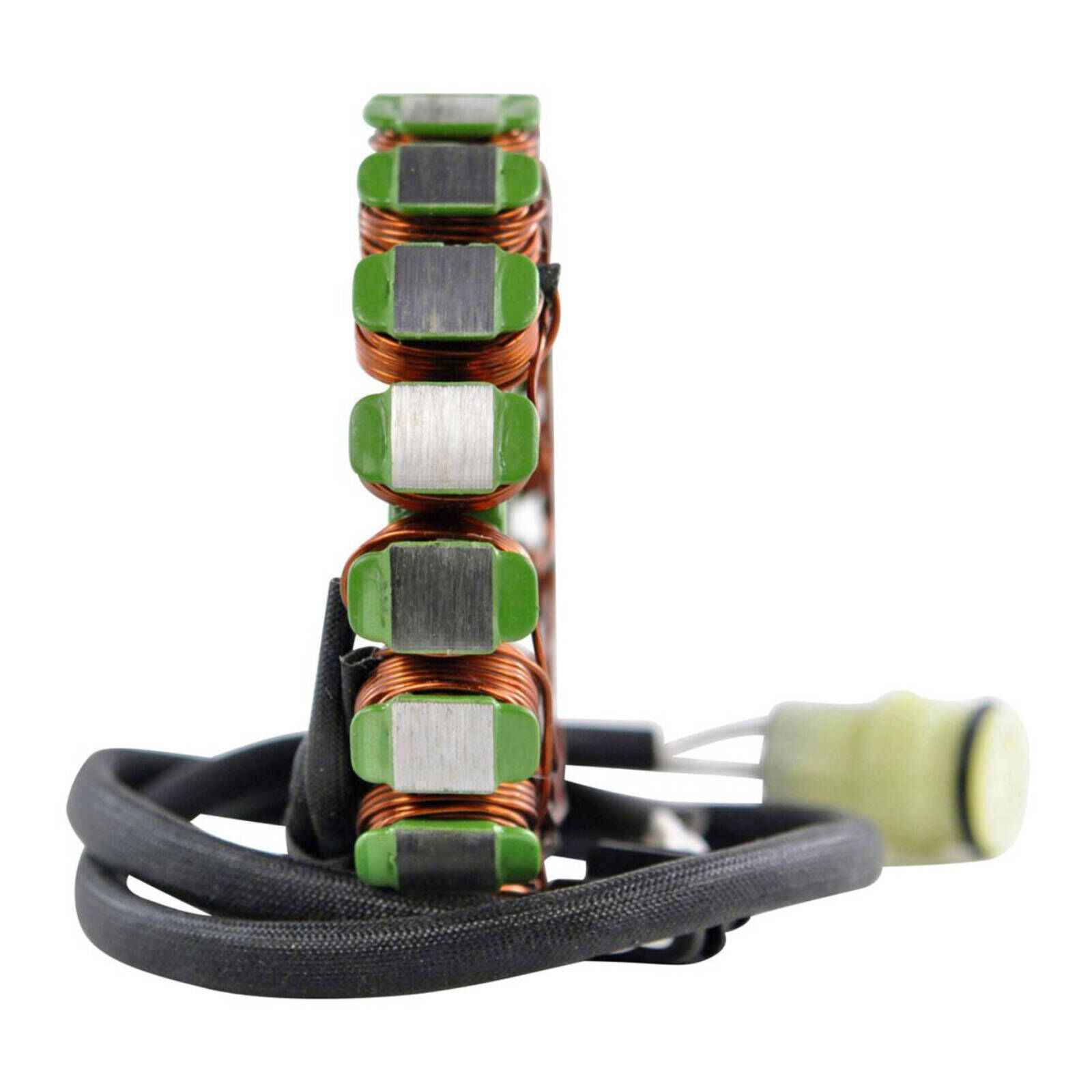

Plug-and-play high output replacement stator from RM Stator.

Dimensions:

  • Interior diameter: 53mm
  • Exterior diameter: 115mm
  • Thickness: 14mm
  • Length of wires — stator to grommet: 90mm
  • Length of wires — grommet to plug: 500mm

Other specifications:

  • Number of wires: 3
  • Number of plugs: 1
  • Number of pins: 3
  • Wire to wire resistance:
    • Alternator: White to White = 0.4 ohms +-20%
    • Altnerator: White to Ground = O.L on Display

Details:

  • Direct replacement to your original unit
  • Plug-and-play direct fit easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding resistant to 200 degrees Celsius

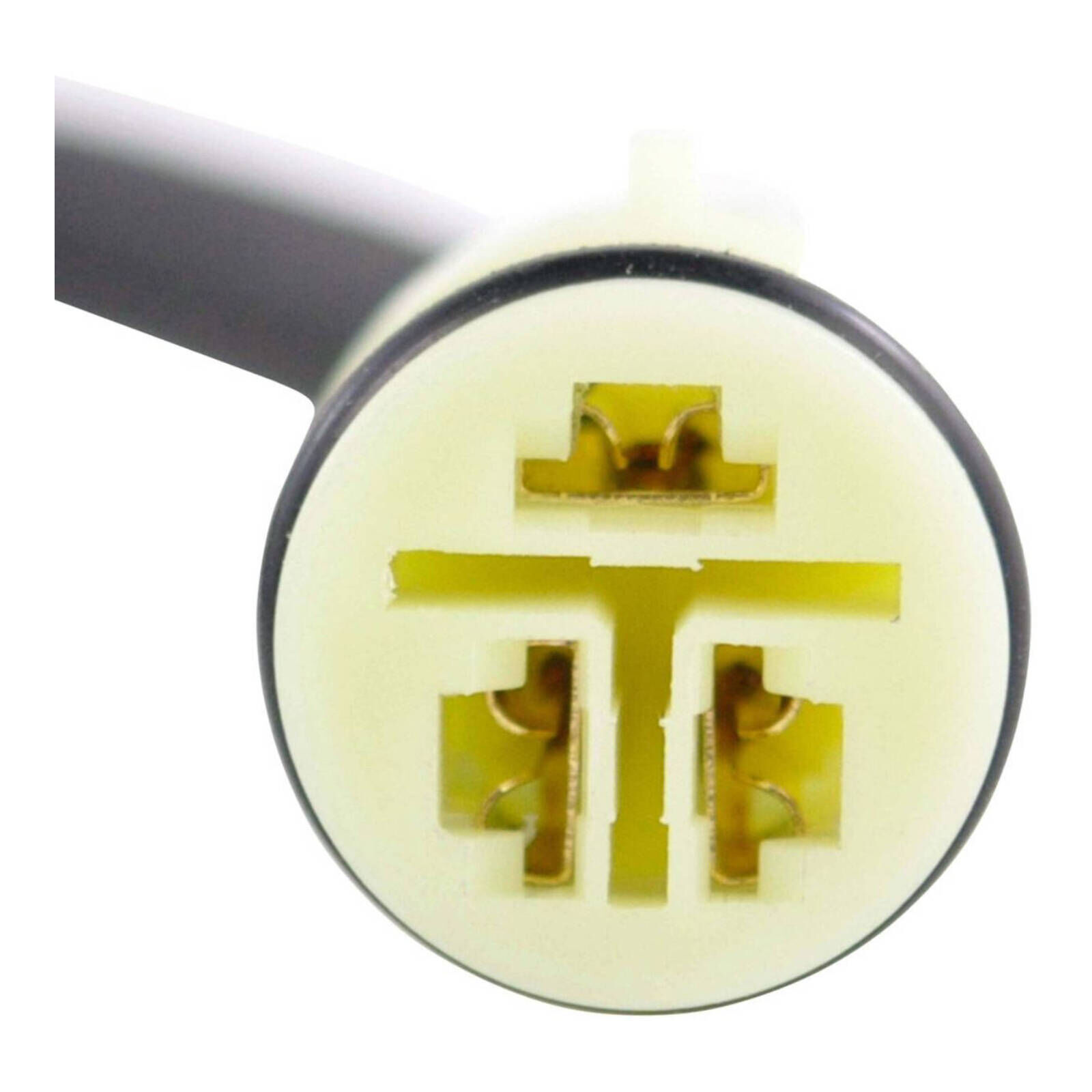

  • Connector included
  • Includes the opposite connector (main harness side) as these are often melted/corroded/defective and a major cause for repetitive electrical issues
  • Rubber grommet included
  • All products shipped are tested
