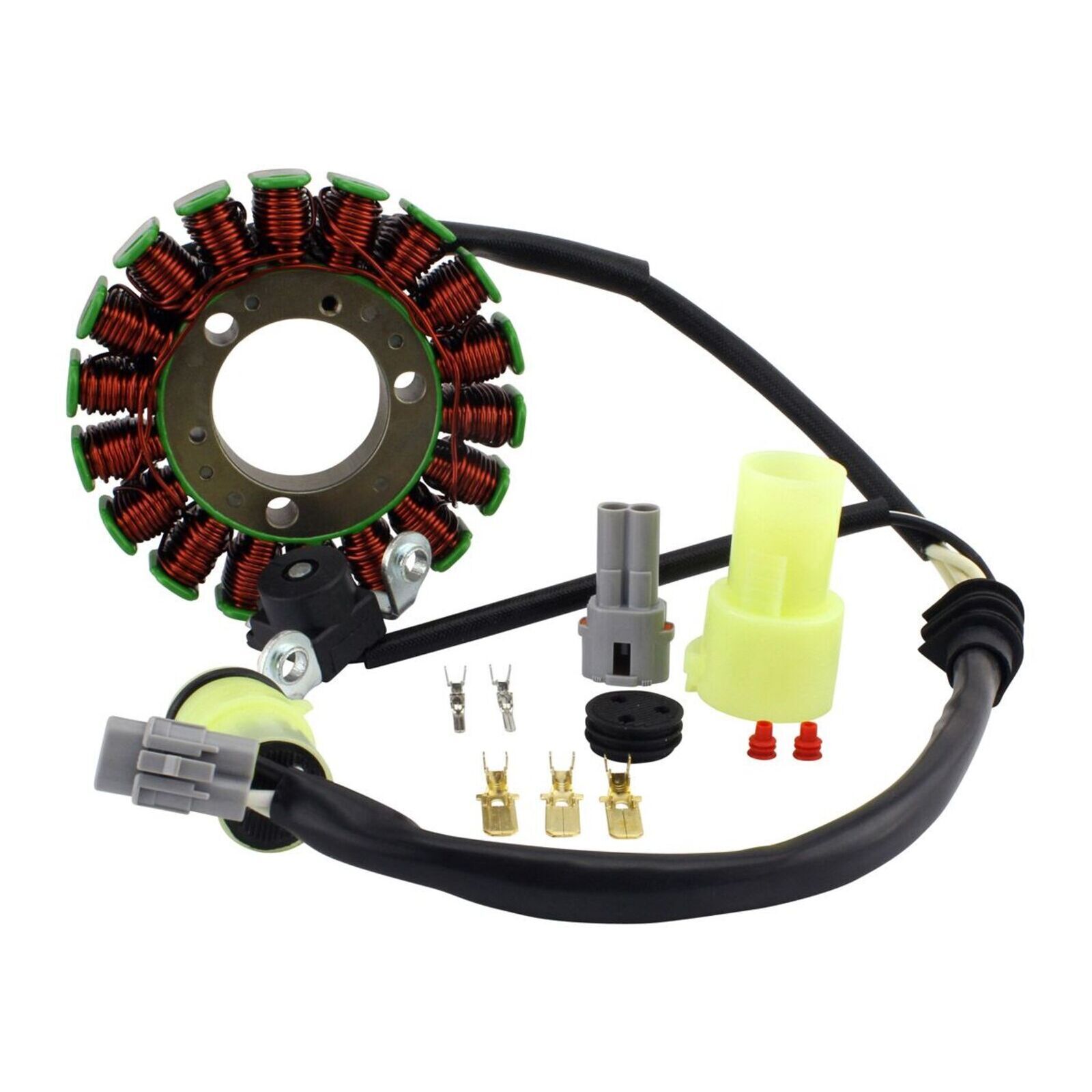

300W High Output RM Stator Yamaha YFZ450R/X '09-'24 (RMS010-107948)

Free Shipping on Orders Over $90!*

* Total order weight must not exceed 10kg. Freight charges may apply. Within Australia only.

  • Direct replacement to your original unit
  • Plug-and-play direct fit easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding resistant to 200 degrees Celsius

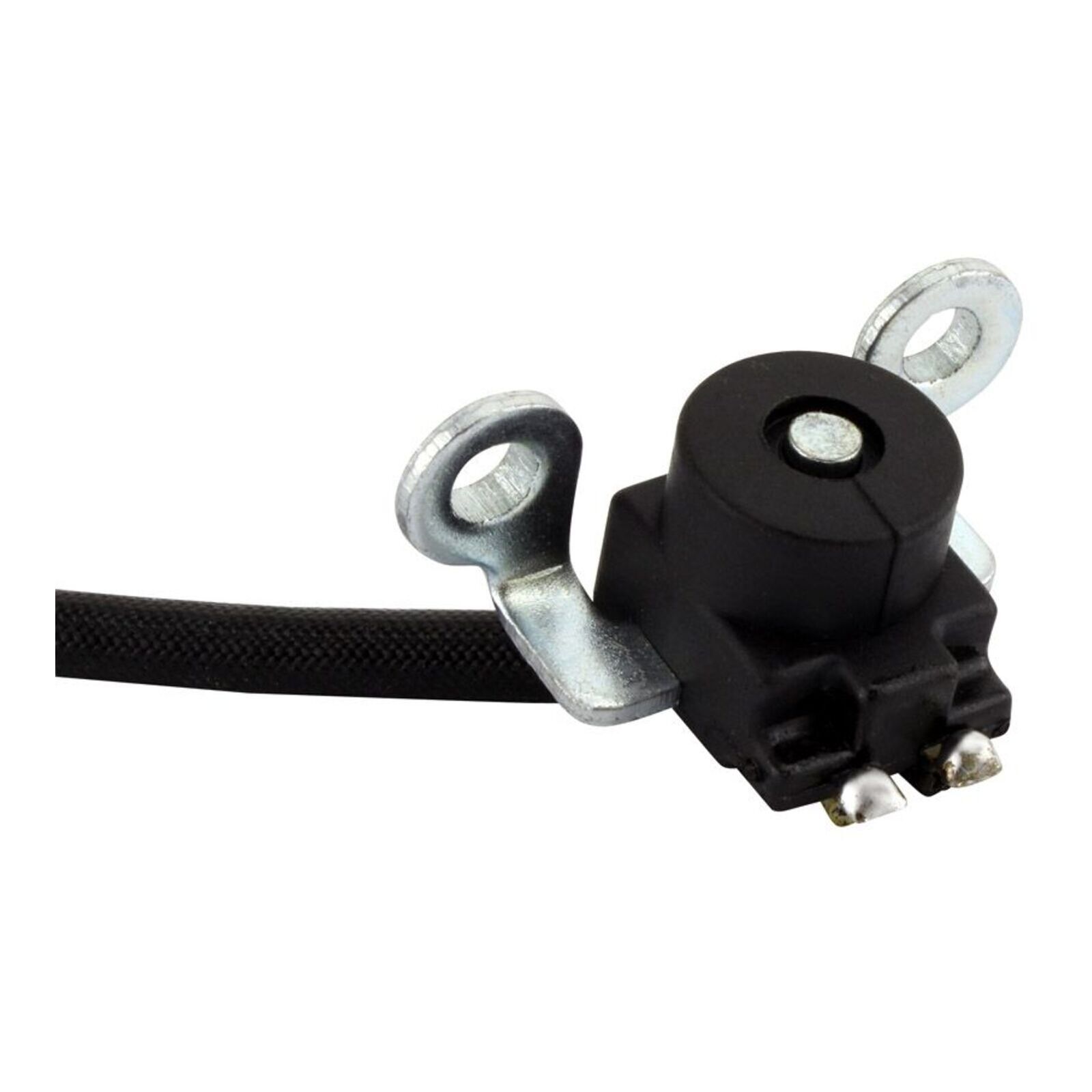

  • Pick up pulsar coil included

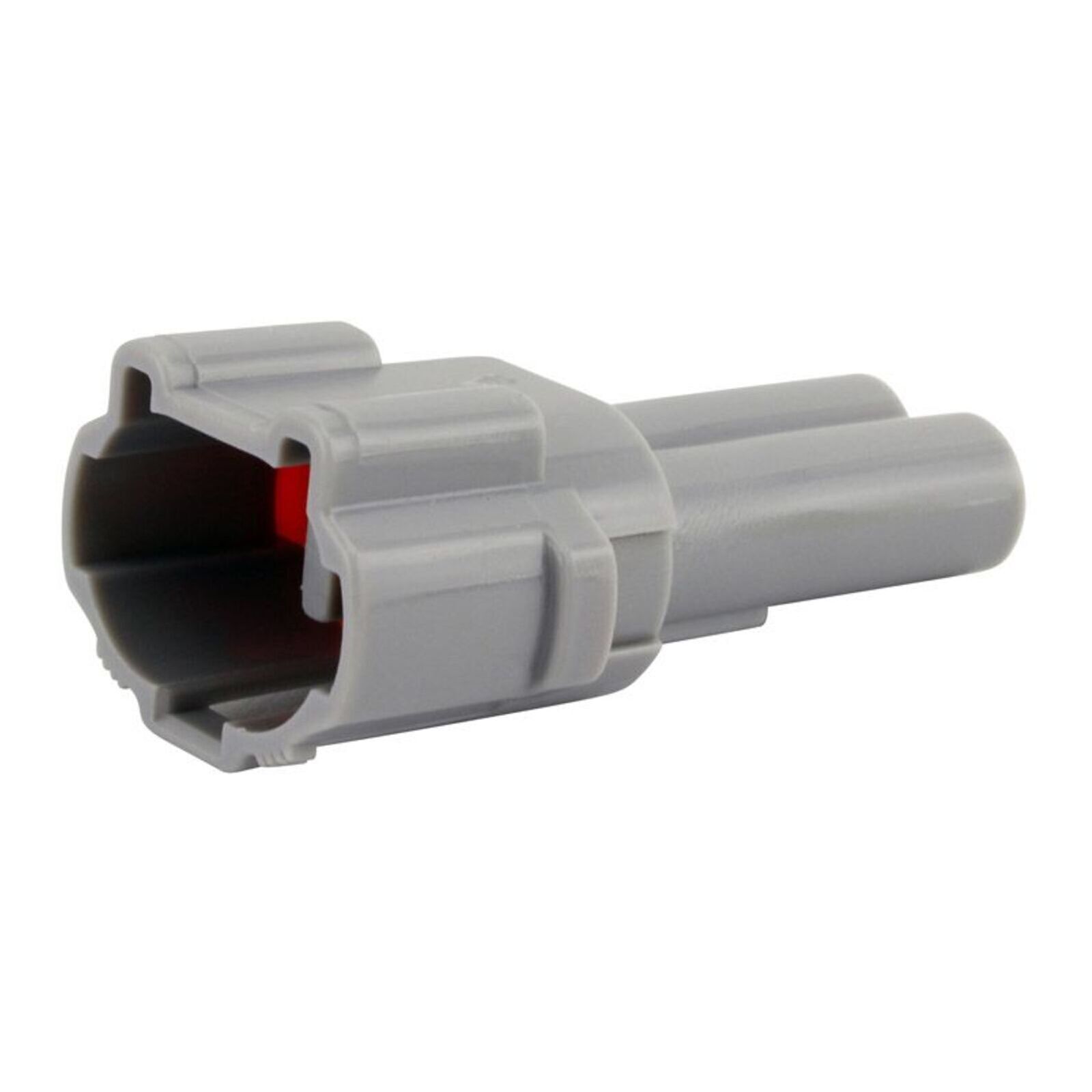

  • Connectors included

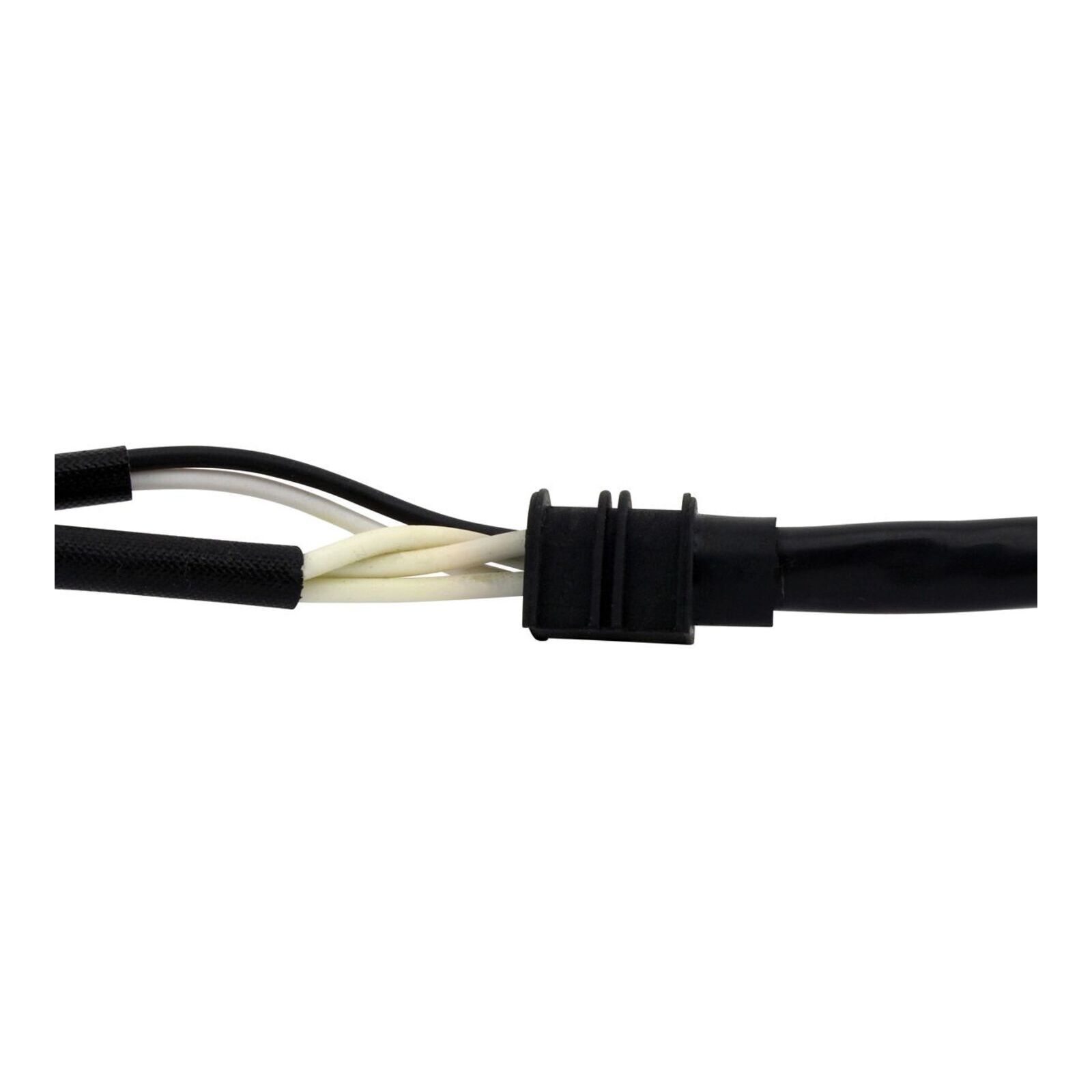

  • Rubber grommet included
  • All products shipped are tested

This stator output 300W (vs OEM 208W) to give you extra power to install accessories and lighting.

20% MORE OUTPUT OVER STOCK WORKS WITH ALL OTHER OEM COMPONENTS.

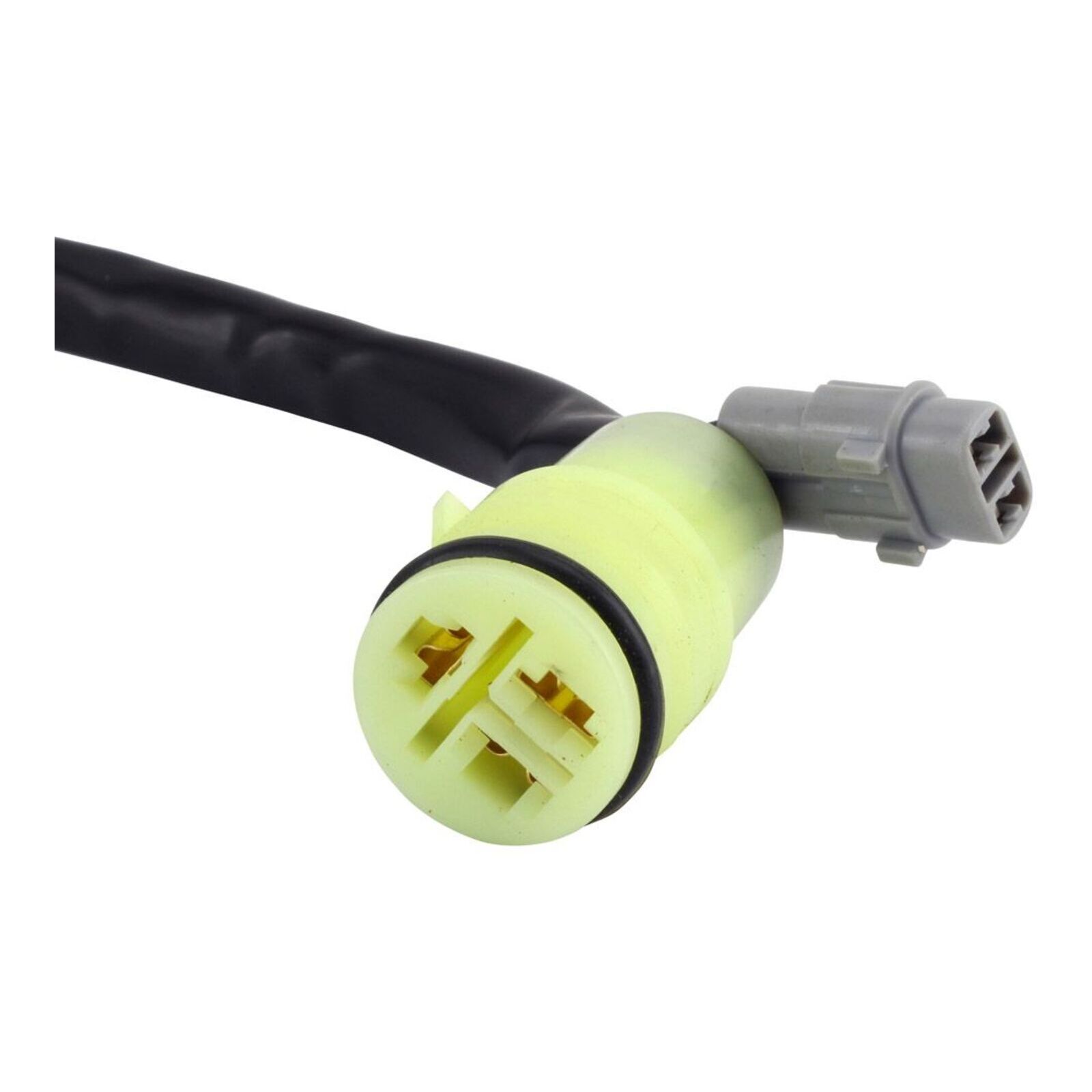

RM Stators has even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Dimensions:

  • Interior diameter: 37 mm
  • Exterior diameter: 97 mm
  • Thickness: 14 mm
  • Length of wires stator to grommet: 160 mm
  • Length of wires grommet to plug: 180 mm
  • Length of pickup coil's wire to grommet: 180 mm

Other specifications:

  • Number of wires: 5
  • Number of plugs: 2
  • Number of pins: 5
  • Number of poles: 18
  • Wire to wire resistance:
    • Alternator: White to White = 0.2 ohms +-20%
    • Pickup: White to Black = 260 ohms +-20%
